M4bar ANN Model Demo

Essential Libraries

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib import rc
rc('mathtext', fontset='cm')
from typing import Tuple, Dict, List
from IPython.display import display, Latex
from sklearn.metrics import explained_variance_score, max_error, mean_absolute_error,  mean_squared_error, r2_score, mean_absolute_percentage_error


import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
import torchvision
import torchmetrics, mlxtend

import torchinfo
from torchinfo import summary

import os
import re
import time

Set the device: cuda or cpu

device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')

if torch.cuda.is_available():
    torch.cuda.set_device(device)

Get the data and create some useful features as extensions

Min and max values of stellar parameters

C_min = 0.0876; C_max = 0.3075;
x_min = 0.2472; x_max = 0.7818;
Qbar_min = 1.3134; Qbar_max = 14.2177;
logQbar_min = 0.2726; logQbar_max =2.6545 ;
S3bar_min = 1.7364; S3bar_max = 31.0343;
M4bar_min = 2.6546657; M4bar_max = 497.19217912;
M4bar_S3bar_min = 1.52452574; M4bar_S3bar_max = 16.02075562;

min-max scaling

min_values = np.array([logQbar_min])
max_values = np.array([logQbar_max])

# min-max scaling function
feature_scaler = lambda data: (data - min_values) / (max_values - min_values)

Input layer features: model’s input parameters

selected_features = ['log(Qbar)']

Test subample of NS configurations

df_test = pd.read_csv("NS_data/test_data_M4bar_small_sample.csv")

df_test

	C	x	Qbar	log(Qbar)	S3bar	M4bar	M4bar/S3bar	EoS
0	0.239153	0.428760	2.245936	0.809123	3.826176	10.698486	2.796130	KDE0v1
1	0.219189	0.613082	2.410448	0.879813	4.278630	12.784681	2.988031	GM1Y6
2	0.119218	0.600355	7.844361	2.059795	16.635909	149.459716	8.984163	DNS
3	0.227783	0.520024	2.358494	0.858023	4.093605	11.890598	2.904676	SLY2
4	0.152180	0.410496	5.973800	1.787383	12.238878	86.049167	7.030805	DS(CMF)-6
...	...	...	...	...	...	...	...	...
404	0.177359	0.580727	3.546486	1.265957	6.834829	29.341403	4.292925	SLY4
405	0.194989	0.519243	3.123775	1.139042	5.852527	22.408290	3.828823	KDE0v
406	0.148098	0.650069	4.285796	1.455306	8.775727	46.095249	5.252584	SK255
407	0.165745	0.282188	5.593451	1.721596	11.334649	75.747830	6.682856	DS(CMF)-2
408	0.138062	0.551272	6.373494	1.852148	13.256588	98.165503	7.405035	DS_CMF-1-Hybr

409 rows × 8 columns

def load_stars(data_frame, batch_size = 2048, shuffle = False):


    df_target = (data_frame['M4bar'])
    np_features = data_frame[selected_features].to_numpy()

    np_targets = df_target.to_numpy()
    np_targets = np.reshape(np_targets, (np_targets.shape[0], 1))

    tensor_features = torch.Tensor(feature_scaler(np_features))

    input_dimension = tensor_features.shape[1]

    tensor_targets = torch.Tensor(np_targets)
    final_dataset = TensorDataset(tensor_features, tensor_targets)

    dataloader = DataLoader(final_dataset, batch_size=batch_size, shuffle=shuffle, num_workers=5, pin_memory=True)

    return dataloader, input_dimension, np_features, np_targets

Dataloader

batch_size = 512
test_dataloader, input_dimension, _, _ = load_stars(df_test, batch_size = batch_size)

Feed-forward ANN Model to perform regression

class ModifiedSigmoid(nn.Module):
    def forward(self, x):
        return M4bar_min + (M4bar_max - M4bar_min)*torch.sigmoid(x)

class RegressorModel(nn.Module):
    def __init__(self,input_dimension, feature_scaler):
        super().__init__()

        self.feature_scaler = feature_scaler

        self.MLP = nn.Sequential(

            nn.Linear(input_dimension, 120),
            nn.GELU(),
            nn.Linear(120, 75),
            nn.GELU(),
            nn.Linear(75, 50),
            nn.GELU(),
            nn.Linear(50, 25),
            nn.GELU(),
            nn.Linear(25, 10),
            nn.GELU(),
            nn.Linear(10, 1),
            ModifiedSigmoid(), # a modification of sigmoid activation function

        )
        # Initialize weights
        for m in self.modules():
            if isinstance(m, nn.Linear):
                nn.init.xavier_uniform_(m.weight)
                nn.init.constant_(m.bias, 0.01)

    def forward(self, x):
        x = self.MLP(x)
        return x

    def predict(self, x):
        x = self.feature_scaler(x).astype('float32')
        x = torch.from_numpy(x).to(self.device)
        x = self.MLP(x)
        x = x.cpu().detach().numpy()
        return x

    def set_device(self, device):
        self.device = device

model_0 = RegressorModel(input_dimension = input_dimension, feature_scaler = feature_scaler)
model_0

RegressorModel(
  (MLP): Sequential(
    (0): Linear(in_features=1, out_features=120, bias=True)
    (1): GELU(approximate='none')
    (2): Linear(in_features=120, out_features=75, bias=True)
    (3): GELU(approximate='none')
    (4): Linear(in_features=75, out_features=50, bias=True)
    (5): GELU(approximate='none')
    (6): Linear(in_features=50, out_features=25, bias=True)
    (7): GELU(approximate='none')
    (8): Linear(in_features=25, out_features=10, bias=True)
    (9): GELU(approximate='none')
    (10): Linear(in_features=10, out_features=1, bias=True)
    (11): ModifiedSigmoid()
  )
)

summary(model_0)

=================================================================
Layer (type:depth-idx)                   Param #
=================================================================
RegressorModel                           --
├─Sequential: 1-1                        --
│    └─Linear: 2-1                       240
│    └─GELU: 2-2                         --
│    └─Linear: 2-3                       9,075
│    └─GELU: 2-4                         --
│    └─Linear: 2-5                       3,800
│    └─GELU: 2-6                         --
│    └─Linear: 2-7                       1,275
│    └─GELU: 2-8                         --
│    └─Linear: 2-9                       260
│    └─GELU: 2-10                        --
│    └─Linear: 2-11                      11
│    └─ModifiedSigmoid: 2-12             --
=================================================================
Total params: 14,661
Trainable params: 14,661
Non-trainable params: 0
=================================================================

ANN Model evaluation

Load the trained Model best weights \(\theta^\star\)

batch_size = 512
model_path = './Model-Weights/M4bar_inference/model.pth'
dataloader_test, _, np_features_test, np_targets_test = load_stars(df_test, batch_size=batch_size)

regressor = RegressorModel(input_dimension = input_dimension, feature_scaler = feature_scaler).to(device)
regressor.set_device(device)
regressor.load_state_dict(torch.load(model_path, map_location=torch.device(device)))
regressor.eval()

RegressorModel(
  (MLP): Sequential(
    (0): Linear(in_features=1, out_features=120, bias=True)
    (1): GELU(approximate='none')
    (2): Linear(in_features=120, out_features=75, bias=True)
    (3): GELU(approximate='none')
    (4): Linear(in_features=75, out_features=50, bias=True)
    (5): GELU(approximate='none')
    (6): Linear(in_features=50, out_features=25, bias=True)
    (7): GELU(approximate='none')
    (8): Linear(in_features=25, out_features=10, bias=True)
    (9): GELU(approximate='none')
    (10): Linear(in_features=10, out_features=1, bias=True)
    (11): ModifiedSigmoid()
  )
)

Residual Error - Fractional difference - Evaluation Measures

def plot_residuals(residual_error, percentage_error):
    witdh, height = 16, 6
    fontsize = 20
    labelsize = 15
    lw = 5

    fig, ax = plt.subplots(1, 2, figsize=(witdh, height))
    # Residual error subplot
    ax[0].plot(residual_error, lw=lw)
    ax[0].set_xlabel(r'Datapoints', fontsize=fontsize)
    ax[0].set_ylabel(r'Residual', fontsize=fontsize)
    ax[0].tick_params(axis='both', which='both', labelsize=labelsize)

    # Percentage error subplot
    ax[1].plot(percentage_error, lw=lw)
    ax[1].set_xlabel(r'Datapoints', fontsize=fontsize)
    ax[1].set_ylabel(r'$PE \ [\%]$', fontsize=fontsize)
    ax[1].tick_params(axis='both', which='both', labelsize=labelsize)

    plt.tight_layout()
    plt.show()

    fig, ax = plt.subplots(1, 2, figsize=(16, 6))
    fontsize = 20
    labelsize = 15
    lw = 5

    # Residual error histogram
    ax[0].hist(residual_error, bins = 20)
    ax[0].set_ylabel(r'Datapoints', fontsize=fontsize)
    ax[0].set_xlabel(r'Residual', fontsize=fontsize)
    ax[0].tick_params(axis='both', which='both', labelsize=labelsize)

    # Percentage error histogram
    ax[1].hist(percentage_error, bins = 20)
    ax[1].set_ylabel(r'Datapoints', fontsize=fontsize)
    ax[1].set_xlabel(r'$PE \ [\%]$', fontsize=fontsize)
    ax[1].tick_params(axis='both', which='both', labelsize=labelsize)

    plt.tight_layout()
    plt.show()

def Evaluation_Measures(y_true, y_pred):

    exp_var = explained_variance_score(y_true, y_pred)
    max_err = max_error(y_true, y_pred)
    mae = mean_absolute_error(y_true, y_pred)
    mse = mean_squared_error(y_true, y_pred)
    r2 = r2_score(y_true, y_pred)
    mape = mean_absolute_percentage_error(y_true, y_pred)

    measures = {'explained_variance': [exp_var],
                'max_error': [max_err],
                'mean_absolute_error': [mae],
                'mean_squared_error': [mse],
                'r2_score': [r2],
                'mean_absolute_percentage_error': [mape]}

    df_eval_measures = pd.DataFrame(measures)

    return df_eval_measures

Evaluation measures in Test Set subsample

np_targets_test = np_targets_test.ravel()

model_estimation_test_set = regressor.predict(np_features_test)
model_estimation_test_set = model_estimation_test_set.ravel().astype(np.float64)

test_eval_measures = Evaluation_Measures(y_true = np_targets_test, y_pred = model_estimation_test_set)
test_eval_measures

	explained_variance	max_error	mean_absolute_error	mean_squared_error	r2_score	mean_absolute_percentage_error
0	0.999412	9.052575	0.727136	1.966189	0.999412	0.021825

Redidual Errors and Pecentange Errors in the test Set subsample

residual_error_test = model_estimation_test_set - np_targets_test
percentage_error_test = (residual_error_test / np_targets_test) * 100

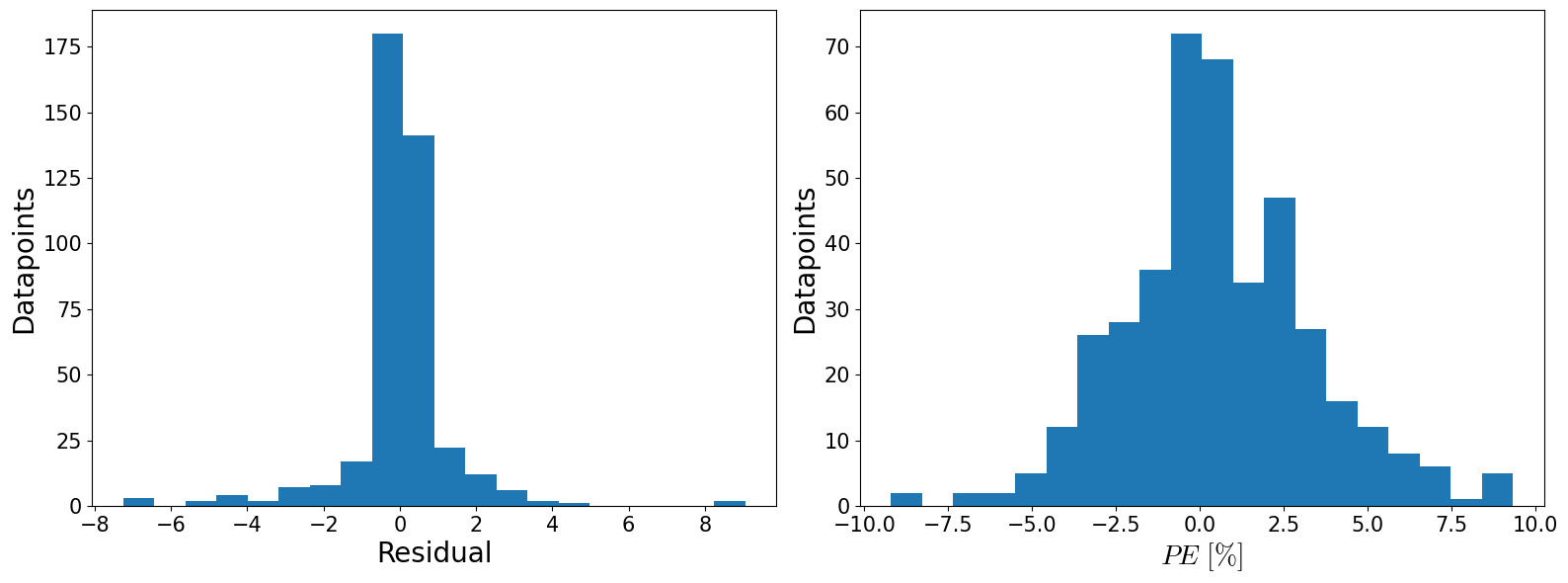

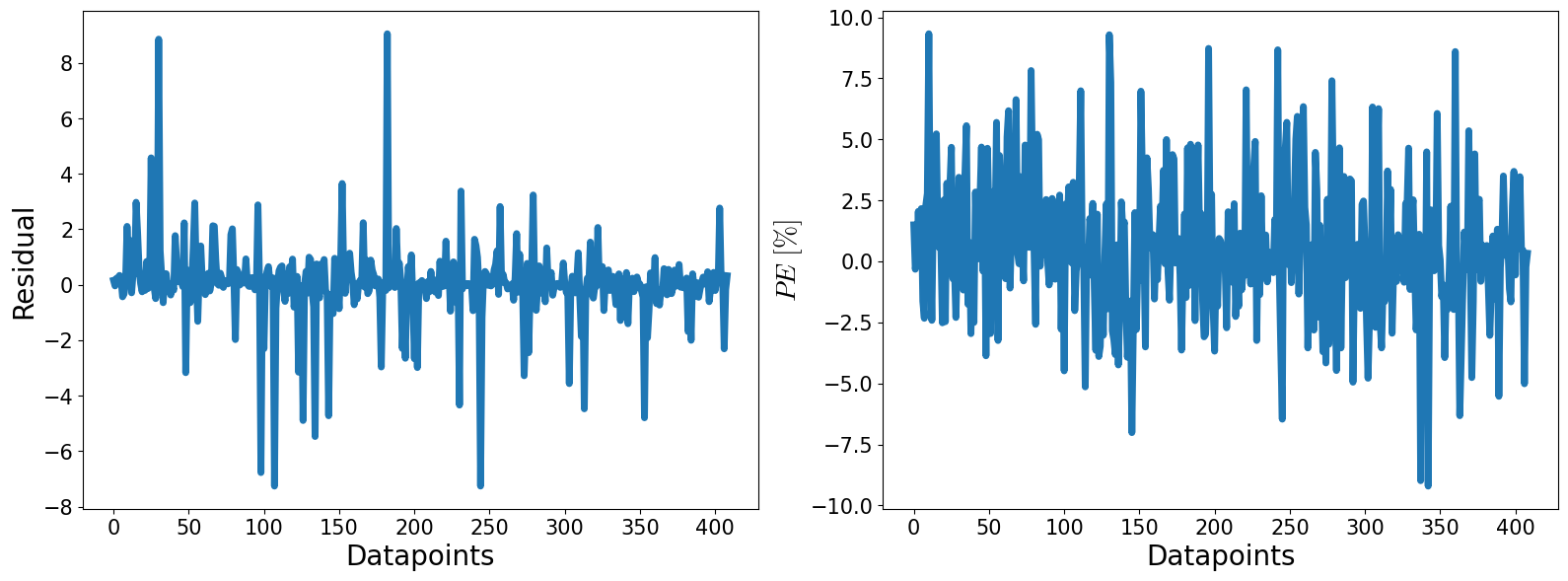

plot_residuals(residual_error_test, percentage_error_test)

df_test['M4bar_model'] = model_estimation_test_set

def Model_predictions_visualization(df, x, z, w, xlabel, zlabel, wlabel, z_model, n_col):

    fig,ax = plt.subplots(figsize=(12, 8),)
    labels_text_size = 30
    dot_size = 15
    font_size = 32

    plt.xticks(fontsize=20, fontweight="bold")
    plt.yticks(fontsize=20, fontweight="bold")

    scatter = ax.scatter(df[x], df[z], c = df[w].to_numpy(), s = dot_size, cmap='Blues_r', marker='o', alpha=0.9, label = 'Test Data')

    cbar = plt.colorbar(scatter,  shrink=1.)
    cbar.set_label(wlabel, fontsize=font_size, rotation = 0)

    plt.scatter(df[x], df[z_model], color='lightpink', alpha=0.85, s=dot_size,zorder = 5, marker='x',label=r'ΑΝΝ Predicted Data')

    plt.xlabel(xlabel,size=labels_text_size)
    plt.ylabel(zlabel,size=labels_text_size)

    for axis in ['top','bottom','left','right']:
        ax.spines[axis].set_linewidth(3.0)

    leg = plt.legend(loc="best", ncol=n_col ,prop={'size': 20}, shadow=True, fontsize="Large" )
    leg.get_frame().set_linewidth(3.0)
    leg.get_frame().set_edgecolor('black')

    plt.grid(False)
    plt.tight_layout()

    plt.show()

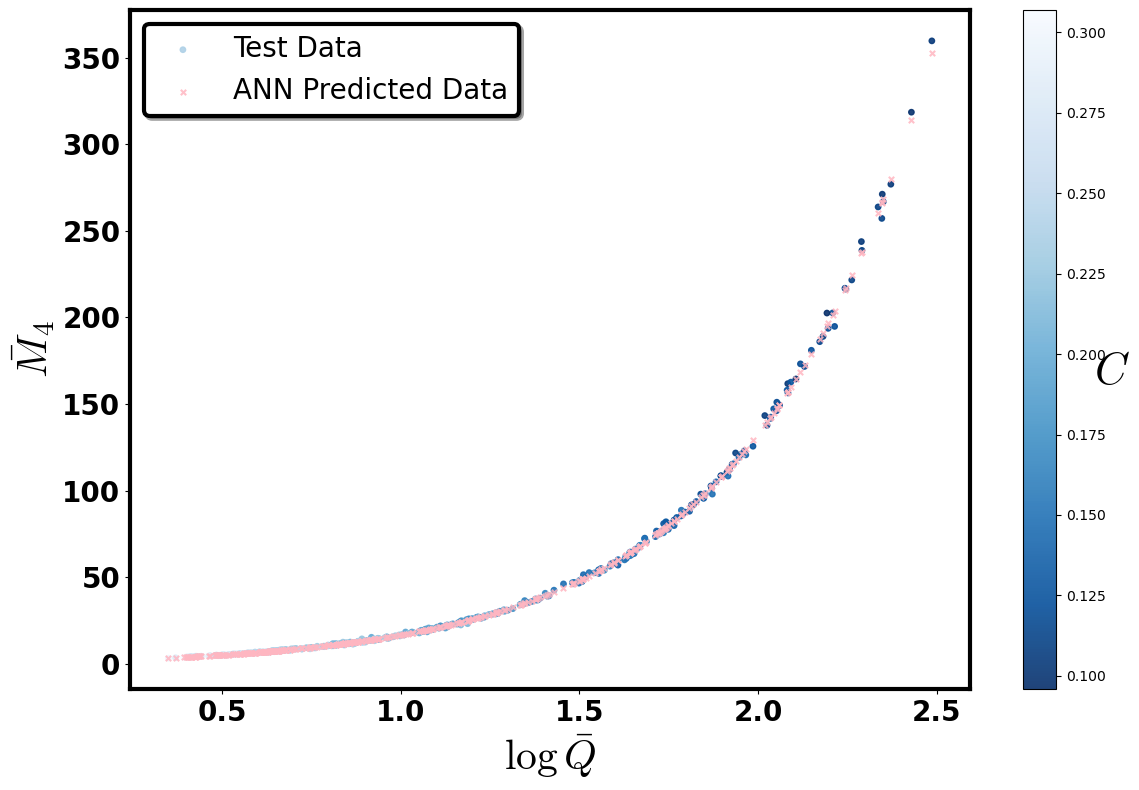

Model_predictions_visualization(df_test, x='log(Qbar)',z='M4bar', w = 'C', xlabel=r'$\log \bar{Q}$', zlabel=r'$\bar{M}_4$', wlabel = r'$C$',
              z_model='M4bar_model', n_col=1)

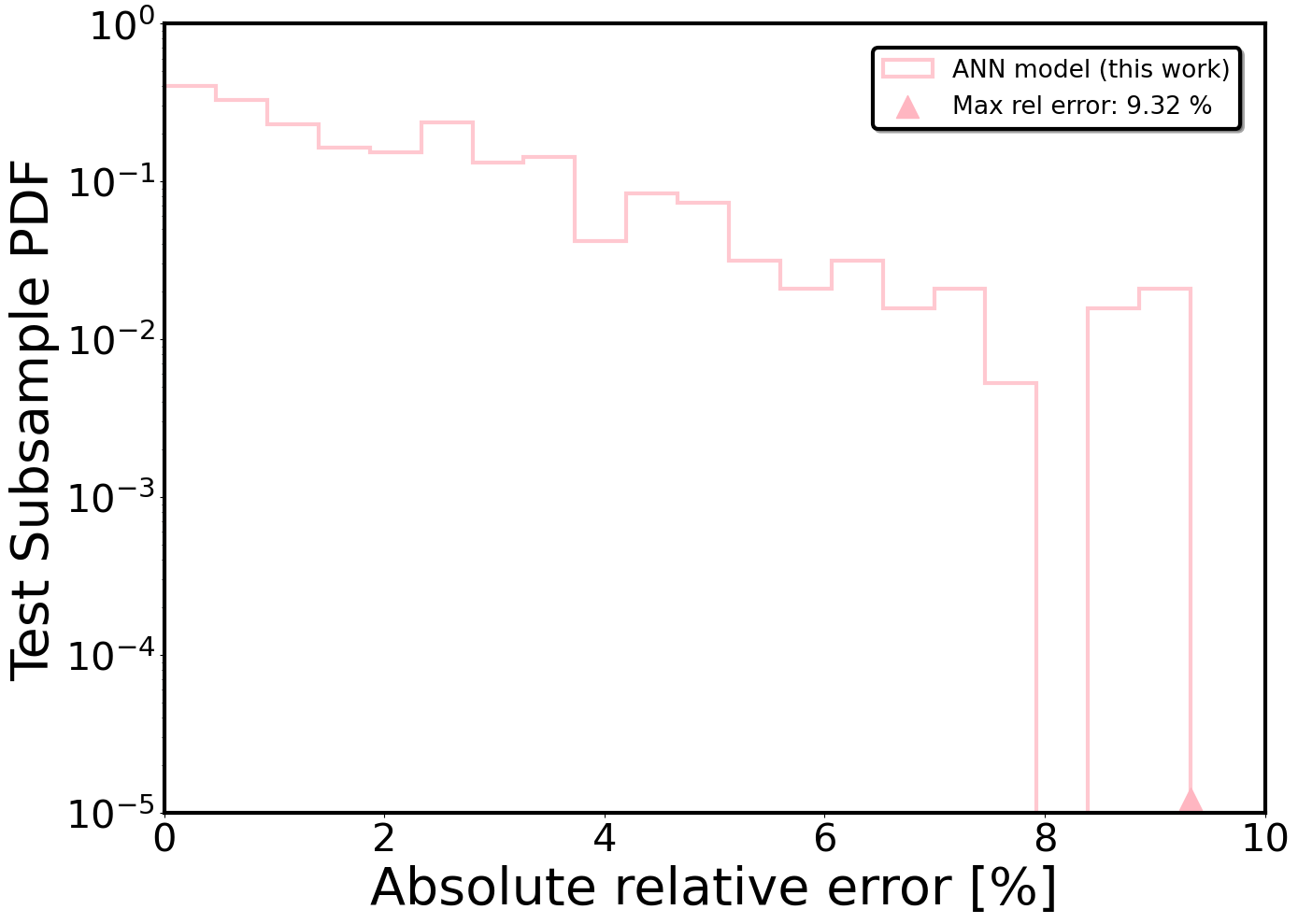

Model’s fractional differences associated with the test set’s subsample

fig,ax = plt.subplots(figsize=(14, 10),)
labels_text_size = 40
plt.xticks(fontsize=30) #fontweight="bold"
plt.yticks(fontsize=30)

xlabel = r'Absolute relative error [%]'
ylabel = r'Test Subsample PDF'


plt.xlabel(xlabel,size=labels_text_size)
plt.ylabel(ylabel,size=labels_text_size)

bins = 20
alpha = 0.75

density = True

y_reg_model = (np.abs(100*(-df_test['M4bar'] + df_test['M4bar_model'])/df_test['M4bar'])).hist(
    density=density,
    bins=bins,
    lw=3,
    edgecolor='lightpink',
    zorder=1,
    histtype='step',
    alpha=alpha,
    label=r"ANN model (this work)",
    color='lightpink'
).autoscale(enable=True, axis='both', tight=True)

max_deviation = (np.abs(100*(-df_test['M4bar'] + df_test['M4bar_model'])/df_test['M4bar'])).max()

vertical_lines = [max_deviation]


plt.scatter(vertical_lines[0], 1.23e-5, color='lightpink',  marker='^', s=300, zorder=2, label=f'Max rel error: {np.round(max_deviation, 2)} %')  # Star marker

for axis in ['top','bottom','left','right']:
    ax.spines[axis].set_linewidth(3.)


plt.yscale('log')

plt.xlim(0,10.)

plt.ylim(1e-5,1)

plt.grid(False)
leg = plt.legend(loc="upper right",ncol=1, borderaxespad=1, prop={'size': 19}, shadow=True, fontsize="large")
leg.get_frame().set_linewidth(3.0)
leg.get_frame().set_edgecolor('black')

plt.tight_layout()
plt.show()
