D ANN Model 2 Demo

Essential Libraries

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib import rc
rc('mathtext', fontset='cm')
from typing import Tuple, Dict, List
from IPython.display import display, Latex
from sklearn.metrics import explained_variance_score, max_error, mean_absolute_error,  mean_squared_error, r2_score, mean_absolute_percentage_error

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
import torchvision
import torchmetrics, mlxtend

import torchinfo
from torchinfo import summary

import os
import re
import time

Set the device: cuda or cpu

device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')

if torch.cuda.is_available():
    torch.cuda.set_device(device)

Get the data and create some useful features as extensions

Min and max values of stellar parameters

C_min = 0.08763469; C_max = 0.30751308;
Mbar_min = 0.909338; Mbar_max = 2.80912;
Rbar_min = 9.93864; Rbar_max = 19.4138;
x_min = 0.1406481; x_max = 0.78176399;
Ibar_min = 4.73725112; Ibar_max = 33.86946319;
D_min = 0.0046990783; D_max = 0.0335965469;
Qbar_min = 1.31339211; Qbar_max = 14.74045551;
logQbar_min = 0.27261318; logQbar_max = 2.69059579;
S3bar_min = 1.73639896; S3bar_max = 32.10634011;

min-max scaling

min_values = np.array([C_min, x_min, logQbar_min])
max_values = np.array([C_max, x_max, logQbar_max])

# min-max scaling function
feature_scaler = lambda data: (data - min_values) / (max_values - min_values)

Input layer features: model’s input parameters

selected_features = ['C','x','log(Qbar)']

Test subample of NS configurations

df_test = pd.read_csv("NS_data/test_data_small_sample.csv")

df_test

	M	Req	C	x	Ibar	D	Qbar	log(Qbar)	S3bar	EoS
0	2.190950	11.9662	0.270131	0.166659	5.928471	0.026846	1.935722	0.660480	3.089488	SK272
1	1.348410	18.3103	0.108649	0.731341	22.361405	0.007117	7.033574	1.950695	15.180773	SKI2
2	2.140930	15.1489	0.208506	0.552628	8.784199	0.018118	2.831782	1.040906	5.118462	DD2_2
3	0.990131	13.9583	0.104655	0.387451	28.397753	0.005605	11.565086	2.447991	24.845141	DS_CMF-4-Hybr
4	1.620250	14.0746	0.169841	0.371895	12.573800	0.012658	4.981185	1.605668	9.990400	DS_CMF-8-Hybr
...	...	...	...	...	...	...	...	...	...	...
397	2.200120	10.8028	0.300475	0.297565	5.216579	0.030509	1.544497	0.434698	2.207297	BSK26
398	1.972780	16.0701	0.181116	0.655830	10.062797	0.015816	3.133462	1.142139	6.054977	Rs
399	2.033340	13.9065	0.215719	0.632598	7.410619	0.021477	2.206460	0.791389	3.821924	KDE0v1
400	1.142140	15.3272	0.109939	0.565663	23.094069	0.006892	8.345383	2.121708	17.784955	PCSB1
401	2.333130	14.6437	0.235064	0.653575	6.613759	0.024064	1.899356	0.641515	3.077256	RMF3

402 rows × 10 columns

def load_stars(data_frame, batch_size = 2048, shuffle = True):


    df_target = (data_frame['D'])
    np_features = data_frame[selected_features].to_numpy()

    np_targets = df_target.to_numpy()
    np_targets = np.reshape(np_targets, (np_targets.shape[0], 1))

    tensor_features = torch.Tensor(feature_scaler(np_features))

    input_dimension = tensor_features.shape[1]

    tensor_targets = torch.Tensor(np_targets)
    final_dataset = TensorDataset(tensor_features, tensor_targets)

    dataloader = DataLoader(final_dataset, batch_size=batch_size, shuffle=shuffle, num_workers=5, pin_memory=True)

    return dataloader, input_dimension, np_features, np_targets

Dataloader

batch_size = 512
test_dataloader, input_dimension, _, _ = load_stars(df_test, batch_size = batch_size)

Feed-forward ANN Model to perform regression

class RegressorModel(nn.Module):
    def __init__(self,input_dimension, feature_scaler):
        super().__init__()

        self.feature_scaler = feature_scaler

        self.MLP = nn.Sequential(

            nn.Linear(input_dimension, 120),
            nn.GELU(),
            nn.Linear(120, 75),
            nn.GELU(),
            nn.Linear(75, 50),
            nn.GELU(),
            nn.Linear(50, 25),
            nn.GELU(),
            nn.Linear(25, 10),
            nn.GELU(),
            nn.Linear(10, 1),
        )
        # Initialize weights
        for m in self.modules():
            if isinstance(m, nn.Linear):
                nn.init.xavier_uniform_(m.weight)
                nn.init.constant_(m.bias, 0.01)

    def forward(self, x):
        x = self.MLP(x)
        return x

    def predict(self, x):
        x = self.feature_scaler(x).astype('float32')
        x = torch.from_numpy(x).to(self.device)
        x = self.MLP(x)
        x = x.cpu().detach().numpy()
        return x

    def set_device(self, device):
        self.device = device

model_0 = RegressorModel(input_dimension = input_dimension, feature_scaler = feature_scaler)
model_0

RegressorModel(
  (MLP): Sequential(
    (0): Linear(in_features=3, out_features=120, bias=True)
    (1): GELU(approximate='none')
    (2): Linear(in_features=120, out_features=75, bias=True)
    (3): GELU(approximate='none')
    (4): Linear(in_features=75, out_features=50, bias=True)
    (5): GELU(approximate='none')
    (6): Linear(in_features=50, out_features=25, bias=True)
    (7): GELU(approximate='none')
    (8): Linear(in_features=25, out_features=10, bias=True)
    (9): GELU(approximate='none')
    (10): Linear(in_features=10, out_features=1, bias=True)
  )
)

summary(model_0)

=================================================================
Layer (type:depth-idx)                   Param #
=================================================================
RegressorModel                           --
├─Sequential: 1-1                        --
│    └─Linear: 2-1                       480
│    └─GELU: 2-2                         --
│    └─Linear: 2-3                       9,075
│    └─GELU: 2-4                         --
│    └─Linear: 2-5                       3,800
│    └─GELU: 2-6                         --
│    └─Linear: 2-7                       1,275
│    └─GELU: 2-8                         --
│    └─Linear: 2-9                       260
│    └─GELU: 2-10                        --
│    └─Linear: 2-11                      11
=================================================================
Total params: 14,901
Trainable params: 14,901
Non-trainable params: 0
=================================================================

ANN Model evaluation

Load the trained Model best weights \(\theta^\star\)

batch_size = 512
model_path = './Model-Weights/D_inference/model_2.pth'
dataloader_test, _, np_features_test, np_targets_test = load_stars(df_test, batch_size=batch_size)

regressor = RegressorModel(input_dimension = input_dimension, feature_scaler = feature_scaler).to(device)
regressor.set_device(device)
regressor.load_state_dict(torch.load(model_path, map_location=torch.device(device)))
regressor.eval()

RegressorModel(
  (MLP): Sequential(
    (0): Linear(in_features=3, out_features=120, bias=True)
    (1): GELU(approximate='none')
    (2): Linear(in_features=120, out_features=75, bias=True)
    (3): GELU(approximate='none')
    (4): Linear(in_features=75, out_features=50, bias=True)
    (5): GELU(approximate='none')
    (6): Linear(in_features=50, out_features=25, bias=True)
    (7): GELU(approximate='none')
    (8): Linear(in_features=25, out_features=10, bias=True)
    (9): GELU(approximate='none')
    (10): Linear(in_features=10, out_features=1, bias=True)
  )
)

Residual Error - Fractional difference - Evaluation Measures

def plot_residuals(residual_error, percentage_error):
    witdh, height = 16, 6
    fontsize = 20
    labelsize = 15
    lw = 5

    fig, ax = plt.subplots(1, 2, figsize=(witdh, height))
    # Residual error subplot
    ax[0].plot(residual_error, lw=lw)
    ax[0].set_xlabel(r'Datapoints', fontsize=fontsize)
    ax[0].set_ylabel(r'Residual', fontsize=fontsize)
    ax[0].tick_params(axis='both', which='both', labelsize=labelsize)

    # Percentage error subplot
    ax[1].plot(percentage_error, lw=lw)
    ax[1].set_xlabel(r'Datapoints', fontsize=fontsize)
    ax[1].set_ylabel(r'$PE \ [\%]$', fontsize=fontsize)
    ax[1].tick_params(axis='both', which='both', labelsize=labelsize)

    plt.tight_layout()
    plt.show()

    fig, ax = plt.subplots(1, 2, figsize=(16, 6))
    fontsize = 20
    labelsize = 15
    lw = 5

    # Residual error histogram
    ax[0].hist(residual_error, bins = 20)
    ax[0].set_ylabel(r'Datapoints', fontsize=fontsize)
    ax[0].set_xlabel(r'Residual', fontsize=fontsize)
    ax[0].tick_params(axis='both', which='both', labelsize=labelsize)

    # Percentage error histogram
    ax[1].hist(percentage_error, bins = 20)
    ax[1].set_ylabel(r'Datapoints', fontsize=fontsize)
    ax[1].set_xlabel(r'$PE \ [\%]$', fontsize=fontsize)
    ax[1].tick_params(axis='both', which='both', labelsize=labelsize)

    plt.tight_layout()
    plt.show()

def Evaluation_Measures(y_true, y_pred):

    exp_var = explained_variance_score(y_true, y_pred)
    max_err = max_error(y_true, y_pred)
    mae = mean_absolute_error(y_true, y_pred)
    mse = mean_squared_error(y_true, y_pred)
    r2 = r2_score(y_true, y_pred)
    mape = mean_absolute_percentage_error(y_true, y_pred)

    measures = {'explained_variance': [exp_var],
                'max_error': [max_err],
                'mean_absolute_error': [mae],
                'mean_squared_error': [mse],
                'r2_score': [r2],
                'mean_absolute_percentage_error': [mape]}

    df_eval_measures = pd.DataFrame(measures)

    return df_eval_measures

Evaluation measures in Test Set subsample

np_targets_test = np_targets_test.ravel()

model_estimation_test_set = regressor.predict(np_features_test)
model_estimation_test_set = model_estimation_test_set.ravel().astype(np.float64)

test_eval_measures = Evaluation_Measures(y_true = np_targets_test, y_pred = model_estimation_test_set)
test_eval_measures

	explained_variance	max_error	mean_absolute_error	mean_squared_error	r2_score	mean_absolute_percentage_error
0	0.999948	0.000196	0.000036	2.413169e-09	0.999948	0.001913

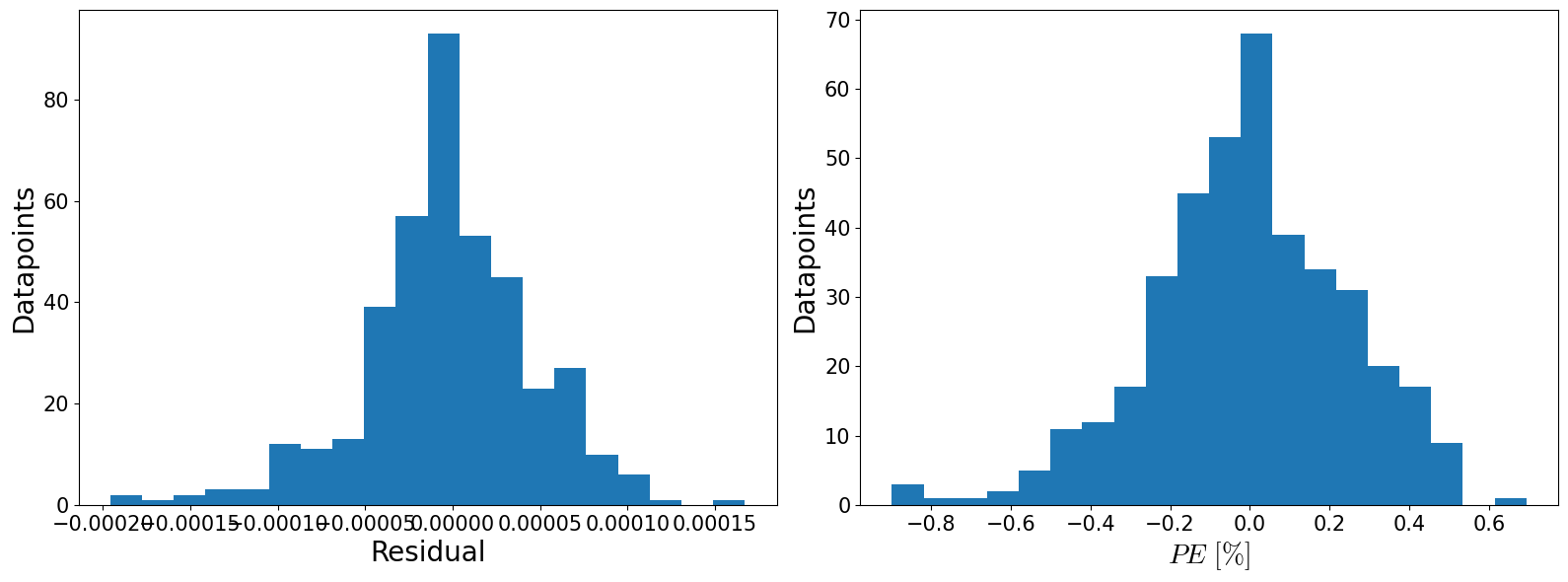

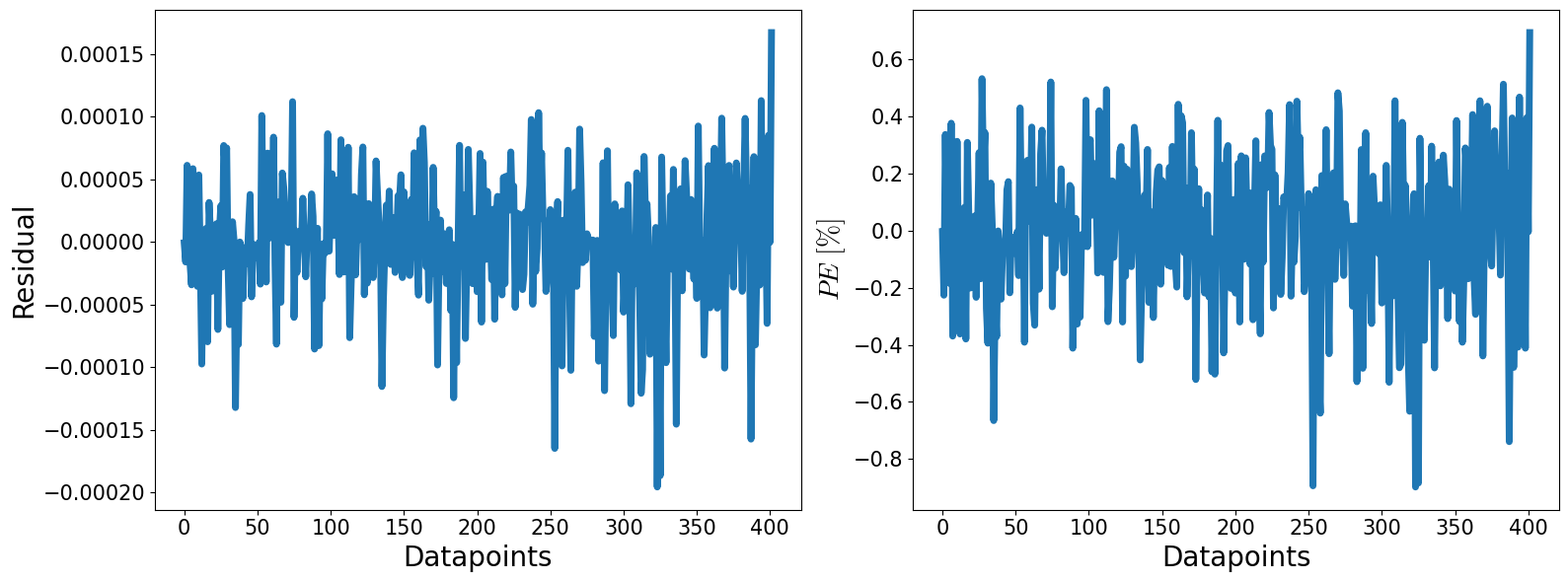

Redidual Errors and Pecentange Errors in the test Set subsample

residual_error_test = model_estimation_test_set - np_targets_test
percentage_error_test = (residual_error_test / np_targets_test) * 100

plot_residuals(residual_error_test, percentage_error_test)

df_test['D_model'] = model_estimation_test_set
df_test['D_model']

0      0.026845
1      0.007101
2      0.018179
3      0.005604
4      0.012640
         ...
397    0.030526
398    0.015751
399    0.021562
400    0.006891
401    0.024231
Name: D_model, Length: 402, dtype: float64

def D_ANN_model(x,y,w):
    input_features = np.column_stack((x, y, w))
    ANN_estimation = regressor.predict(input_features)
    ANN_estimation = ANN_estimation.ravel().astype(np.float64)
    return ANN_estimation.reshape(x.shape)

D_ANN_model(df_test['C'], df_test['x'], df_test['log(Qbar)'])

array([0.02684515, 0.00710129, 0.01817945, 0.00560361, 0.01264029,
       0.0185675 , 0.01556536, 0.00840048, 0.00816241, 0.02001788,
       0.01710289, 0.015199  , 0.02685622, 0.0129417 , 0.00975094,
       0.01322413, 0.020949  , 0.01019705, 0.00903305, 0.01960904,
       0.01418141, 0.0137535 , 0.02799466, 0.02990175, 0.02749754,
       0.01054232, 0.01190199, 0.01451536, 0.02748949, 0.02188969,
       0.00770937, 0.01671034, 0.00733729, 0.00963565, 0.00882688,
       0.01974857, 0.01888756, 0.02201036, 0.01692744, 0.0078564 ,
       0.01881349, 0.01755393, 0.01031076, 0.02690642, 0.00923249,
       0.02202696, 0.02013774, 0.0080046 , 0.02157769, 0.01556509,
       0.00943435, 0.01816864, 0.02143952, 0.02355035, 0.00870037,
       0.02919235, 0.00817143, 0.0301838 , 0.01806923, 0.00975469,
       0.02303557, 0.02310592, 0.00674477, 0.02459052, 0.02592266,
       0.00753065, 0.02352708, 0.02051427, 0.01227062, 0.0285866 ,
       0.0114696 , 0.00616949, 0.02966163, 0.03070258, 0.02158703,
       0.02256114, 0.0097811 , 0.01852931, 0.00829778, 0.01400468,
       0.02482151, 0.01610547, 0.01872578, 0.0189506 , 0.01408078,
       0.0276835 , 0.0102515 , 0.02413406, 0.01355937, 0.02070484,
       0.01531188, 0.02517146, 0.02522743, 0.00556967, 0.01500745,
       0.010559  , 0.01634732, 0.02182689, 0.01897412, 0.01325275,
       0.00998443, 0.01710181, 0.00949794, 0.0070464 , 0.02913495,
       0.01839013, 0.01759794, 0.01947219, 0.00838929, 0.02804551,
       0.0093562 , 0.01792453, 0.01535312, 0.02392284, 0.01649413,
       0.0120888 , 0.02070221, 0.02827271, 0.02552852, 0.02298284,
       0.01031297, 0.01955305, 0.02579061, 0.0131671 , 0.00790596,
       0.02069554, 0.01419437, 0.01448927, 0.00872461, 0.02265056,
       0.02294538, 0.01788788, 0.0124677 , 0.00858147, 0.0081475 ,
       0.02537986, 0.02150489, 0.00703537, 0.02353525, 0.02604598,
       0.01427267, 0.00715404, 0.00850956, 0.02966054, 0.00800671,
       0.01137147, 0.02692128, 0.01602769, 0.0239715 , 0.01518457,
       0.02274948, 0.02927428, 0.01120392, 0.00926026, 0.02211094,
       0.01523949, 0.00596495, 0.02413569, 0.00608023, 0.01419137,
       0.02148634, 0.01846475, 0.00853391, 0.02260392, 0.01675188,
       0.02548341, 0.00930579, 0.02005225, 0.02798923, 0.02890682,
       0.01738308, 0.0125048 , 0.01135159, 0.0187606 , 0.02538594,
       0.01181442, 0.01700711, 0.00917226, 0.00915867, 0.01520122,
       0.01239536, 0.00773126, 0.0235465 , 0.00718255, 0.0250604 ,
       0.01438675, 0.01908887, 0.00665563, 0.01998678, 0.02847386,
       0.01145517, 0.0187717 , 0.0179407 , 0.01540942, 0.02649021,
       0.0089976 , 0.02557783, 0.01647216, 0.02343457, 0.01738456,
       0.01816409, 0.02726322, 0.02998393, 0.01995792, 0.02434351,
       0.02191362, 0.01404868, 0.01583009, 0.00609142, 0.01848499,
       0.02574021, 0.01974563, 0.01974407, 0.024031  , 0.01156255,
       0.02290731, 0.02456788, 0.01168766, 0.02223   , 0.03041597,
       0.0200495 , 0.01312529, 0.01669426, 0.01738858, 0.00927614,
       0.01568187, 0.01927477, 0.0118186 , 0.01761273, 0.02827867,
       0.01023276, 0.01701699, 0.02714549, 0.02016974, 0.01576116,
       0.02930758, 0.02200319, 0.02219783, 0.02164964, 0.02987493,
       0.02144014, 0.02669825, 0.02283432, 0.01434516, 0.02176221,
       0.02291616, 0.02246789, 0.01850025, 0.01535287, 0.01085665,
       0.01983524, 0.01704891, 0.00786493, 0.01828404, 0.01003383,
       0.02241964, 0.02352008, 0.017559  , 0.01539819, 0.00902312,
       0.00875363, 0.01457835, 0.02072755, 0.02468988, 0.02368553,
       0.00823914, 0.02620083, 0.01962206, 0.02078357, 0.02736361,
       0.018716  , 0.01129674, 0.03265984, 0.02322996, 0.00932521,
       0.00686048, 0.00852159, 0.01064758, 0.0118484 , 0.00933038,
       0.0284786 , 0.01536143, 0.00685486, 0.01790808, 0.0289986 ,
       0.02416029, 0.02226471, 0.02452362, 0.01881973, 0.02124746,
       0.01841872, 0.01683485, 0.02877034, 0.02293661, 0.01590005,
       0.02332577, 0.00806563, 0.01367961, 0.02799688, 0.02723116,
       0.02208844, 0.02174181, 0.01674673, 0.01995124, 0.02804805,
       0.02421099, 0.0111311 , 0.01473632, 0.01561041, 0.01215472,
       0.00653896, 0.02171941, 0.02505864, 0.02171493, 0.01802089,
       0.02945374, 0.01905283, 0.00777419, 0.02064971, 0.01060791,
       0.01436313, 0.02312372, 0.00887364, 0.02159718, 0.02023228,
       0.02093182, 0.02096896, 0.02573966, 0.01660364, 0.0250263 ,
       0.01262883, 0.01032612, 0.02328251, 0.02366218, 0.01957142,
       0.02616757, 0.03013585, 0.01378346, 0.02529052, 0.01763313,
       0.02020046, 0.00809299, 0.02454746, 0.02207193, 0.00779282,
       0.007056  , 0.02325857, 0.01398358, 0.01972985, 0.01543479,
       0.02132009, 0.02403512, 0.01320675, 0.01095204, 0.00959815,
       0.02303206, 0.02234731, 0.0075204 , 0.02785058, 0.03121058,
       0.02444505, 0.00598713, 0.0184285 , 0.02025755, 0.01800852,
       0.02871686, 0.02293684, 0.02177906, 0.01154724, 0.02286124,
       0.00594955, 0.01829889, 0.01405004, 0.02892869, 0.00848067,
       0.02915505, 0.01509347, 0.01806603, 0.02365734, 0.01172506,
       0.03053275, 0.02537128, 0.01733887, 0.01929776, 0.02615923,
       0.02109722, 0.01015418, 0.02114954, 0.02898146, 0.01728942,
       0.01708733, 0.01426794, 0.01838046, 0.00842836, 0.02419807,
       0.01373504, 0.01174638, 0.03052593, 0.01575103, 0.02156175,
       0.0068913 , 0.02423129])

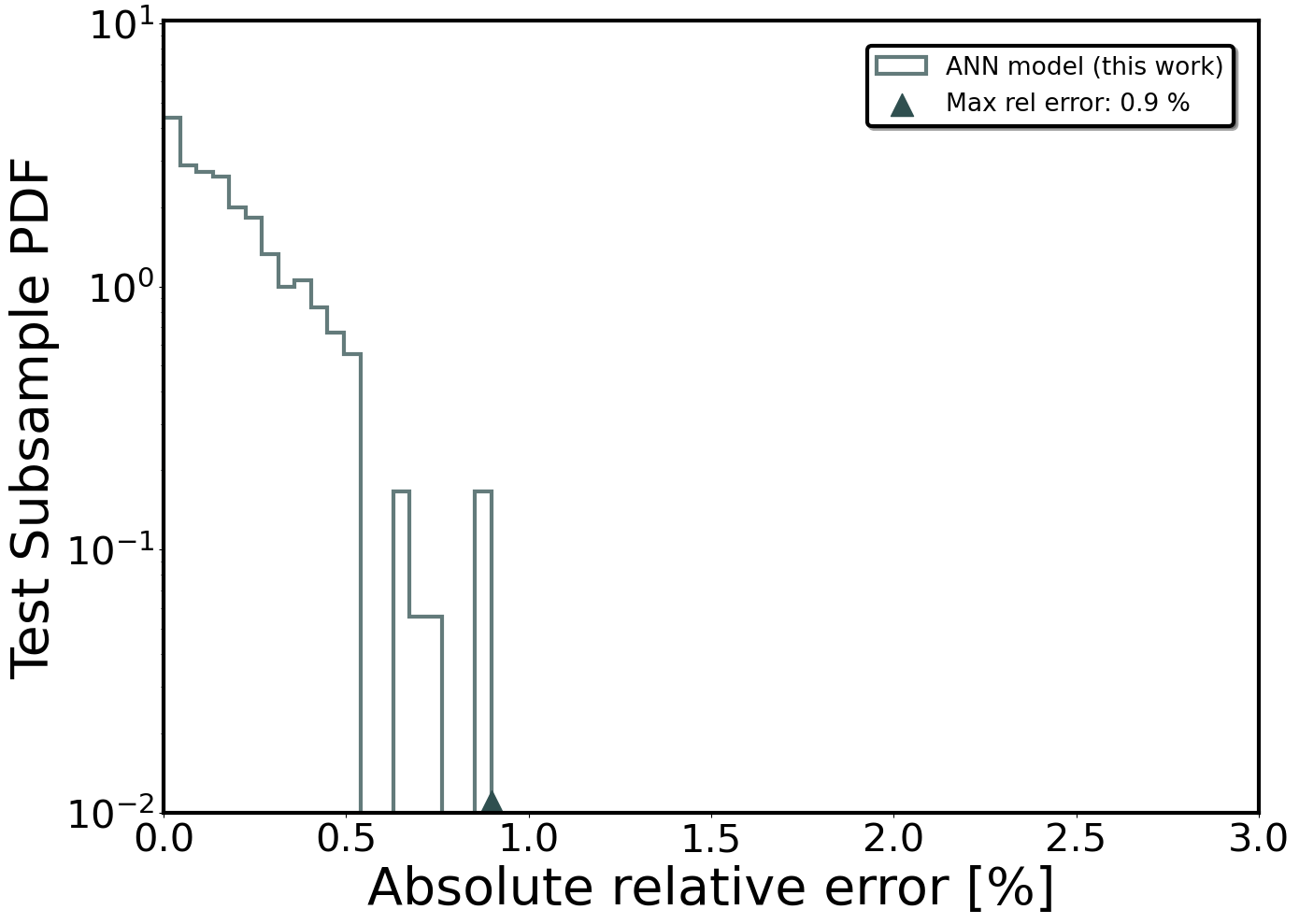

Model’s fractional differences associated with the test set’s subsample

fig,ax = plt.subplots(figsize=(14, 10),)
labels_text_size = 40
plt.xticks(fontsize=30)
plt.yticks(fontsize=30)
xlabel = r'Absolute relative error [%]'
ylabel = r'Test Subsample PDF'


plt.xlabel(xlabel,size=labels_text_size)
plt.ylabel(ylabel,size=labels_text_size)

bins = 20
alpha = 0.75

density = True

y_reg_model = (np.abs(100*(-df_test['D'] + df_test['D_model'])/df_test['D'])).hist(
    density=density,
    bins=bins,
    lw=3,
    edgecolor='darkslategray',
    zorder=1,
    histtype='step',
    alpha=alpha,
    label=r"ANN model (this work)",
    color='darkslategray',
).autoscale(enable=True, axis='both', tight=True)

max_deviation = (np.abs(100*(-df_test['D'] + df_test['D_model'])/df_test['D'])).max()

vertical_lines = [max_deviation]

plt.scatter(vertical_lines[0], 1.1e-2, color='darkslategray',  marker='^', s=300, zorder=2, label=f'Max rel error: {np.round(max_deviation, 2)} %')  # Star marker


for axis in ['top','bottom','left','right']:
    ax.spines[axis].set_linewidth(3.)


plt.yscale('log')

plt.xlim(0,3)
plt.ylim(1e-2,10.2)

plt.grid(False)
leg = plt.legend(loc="upper right",ncol=1, borderaxespad=1, prop={'size': 19}, shadow=True, fontsize="large")
leg.get_frame().set_linewidth(3.0)
leg.get_frame().set_edgecolor('black')

plt.tight_layout()
plt.show()
