Inspect foreground and background HDF5 files

AresGW ACME training session

Nikolaos Stergioulas

Aristotle University of Thessaloniki

1) Setup

import h5py
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

HDF_PATH = "data7200/foreground_train.hdf"

2) Open the file and inspect contents

f = h5py.File(HDF_PATH, "r")
print("Opened:", f.filename)
print("Root keys:", list(f.keys()))

Opened: data7200/foreground_train.hdf
Root keys: ['H1', 'L1']

3) Print the tree (groups/datasets) with shapes and dtypes

MAX_CHILDREN_TO_PRINT = 4

def _short(value, maxlen=80):
    text = repr(value)
    if len(text) > maxlen:
        return text[: maxlen - 3] + "..."
    return text

def print_hdf5_tree_with_attrs(obj, prefix="", max_depth=7, depth=0, max_children=MAX_CHILDREN_TO_PRINT):
    """Recursively print HDF5 tree with shapes, dtypes, and attributes up to one more depth."""
    if depth > max_depth:
        print(prefix + "… (max depth reached)")
        return

    if isinstance(obj, h5py.File) or isinstance(obj, h5py.Group):
        keys = list(obj.keys())
        if len(keys) > max_children:
            keys = keys[:max_children]
            truncated = True
        else:
            truncated = False

        for name in keys:
            item = obj[name]
            if isinstance(item, h5py.Group):
                print(f"{prefix}{name}/  (Group)  attrs={len(item.attrs)}")
                for k, v in item.attrs.items():
                    print(f"{prefix}  - {k}: {_short(v)}")
                print_hdf5_tree_with_attrs(item, prefix + "  ", max_depth, depth + 1, max_children)
            elif isinstance(item, h5py.Dataset):
                shape = item.shape
                dtype = item.dtype
                print(f"{prefix}{name}  (Dataset) shape={shape}, dtype={dtype}, attrs={len(item.attrs)}")
                for k, v in item.attrs.items():
                    print(f"{prefix}  - {k}: {_short(v)}")
            else:
                print(f"{prefix}{name}  ({type(item)})")

        if truncated:
            print(prefix + f"… ({len(obj.keys()) - max_children} more children not shown)")
    else:
        print(prefix + f"(Unknown object type: {type(obj)})")

print_hdf5_tree_with_attrs(f)

H1/  (Group)  attrs=0
  1238205077  (Dataset) shape=(14745600,), dtype=float64, attrs=2
    - delta_t: np.float64(0.00048828125)
    - start_time: np.float64(1238205077.0)
L1/  (Group)  attrs=0
  1238205077  (Dataset) shape=(14745600,), dtype=float64, attrs=2
    - delta_t: np.float64(0.00048828125)
    - start_time: np.float64(1238205077.0)

3) Build an overview table of segments (start_time, delta_t, samples, duration)

def segment_summary_for_ifo(ifo):
    if ifo not in f:
        return pd.DataFrame()

    rows = []
    grp = f[ifo]

    for seg_key in grp.keys():
        seg = grp[seg_key]

        # segment-level attrs (preferred)
        start_time = seg.attrs.get("start_time", None)
        delta_t = seg.attrs.get("delta_t", None)

        # find dataset to get length
        ds = None
        ds_path = None

        if isinstance(seg, h5py.Dataset):
            ds = seg
            ds_path = f"/{ifo}/{seg_key}"
        elif isinstance(seg, h5py.Group):
            name, ds = first_dataset_in_group(seg)
            if ds is not None:
                ds_path = f"/{ifo}/{seg_key}/{name}"

        n = None
        if ds is not None and ds.ndim >= 1:
            n = int(ds.shape[0])

        # fallback: if dataset has attrs
        if start_time is None and ds is not None:
            start_time = ds.attrs.get("start_time", None)
        if delta_t is None and ds is not None:
            delta_t = ds.attrs.get("delta_t", None)

        # compute duration if possible
        duration = None
        if delta_t is not None and n is not None:
            try:
                duration = float(delta_t) * n
            except Exception:
                duration = None

        rows.append({
            "ifo": ifo,
            "segment_key": str(seg_key),
            "path": ds_path,
            "start_time": float(start_time) if start_time is not None else np.nan,
            "delta_t": float(delta_t) if delta_t is not None else np.nan,
            "n_samples": n if n is not None else np.nan,
            "duration_s": duration if duration is not None else np.nan
        })

    df = pd.DataFrame(rows)
    # Try to sort by numeric segment_key if possible, else by start_time
    try:
        df["_k"] = df["segment_key"].astype(int)
        df = df.sort_values(["ifo", "_k"]).drop(columns=["_k"])
    except Exception:
        df = df.sort_values(["ifo", "start_time"])
    return df.reset_index(drop=True)

df_H1 = segment_summary_for_ifo("H1")
df_L1 = segment_summary_for_ifo("L1")

df = pd.concat([df_H1, df_L1], ignore_index=True)
display(df.head(20))

print("Counts:")
print(df.groupby("ifo").size())

	ifo	segment_key	path	start_time	delta_t	n_samples	duration_s
0	H1	1238205077	/H1/1238205077	1.238205e+09	0.000488	14745600	7200.0
1	L1	1238205077	/L1/1238205077	1.238205e+09	0.000488	14745600	7200.0

Counts:
ifo
H1    1
L1    1
dtype: int64

4) DATA COVERAGE AND GAPS

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# If you already have df_H1/df_L1 from earlier cells, great.
# Otherwise, use the combined df you built (or rebuild using your segment_summary_for_ifo()).

def _prep_ifo_df(df_ifo: pd.DataFrame) -> pd.DataFrame:
    """Keep only rows with enough info and compute end_time."""
    d = df_ifo.copy()
    d = d.dropna(subset=["start_time", "delta_t", "n_samples"])
    d["start_time"] = d["start_time"].astype(float)
    d["delta_t"] = d["delta_t"].astype(float)
    d["n_samples"] = d["n_samples"].astype(int)
    d["end_time"] = d["start_time"] + d["delta_t"] * d["n_samples"]
    d = d.sort_values("start_time").reset_index(drop=True)
    return d

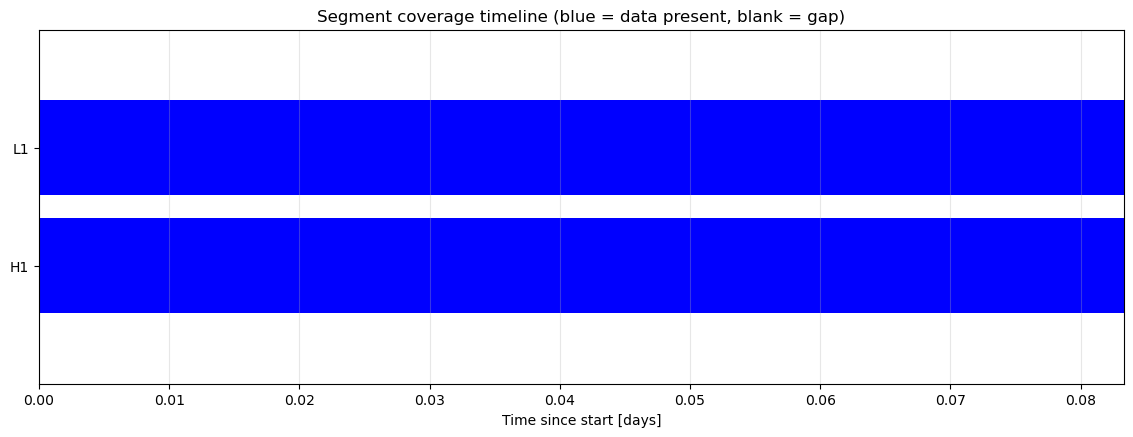

def plot_full_timeline(df_H1=None, df_L1=None, df_all=None, unit="days"):
    """
    Plot segment coverage as blue boxes; gaps appear as blank space.

    Provide either:
      - df_H1 and/or df_L1, OR
      - df_all with an 'ifo' column (values like 'H1', 'L1').
    """
    if df_all is None:
        frames = []
        if df_H1 is not None and not df_H1.empty:
            d = df_H1.copy()
            d["ifo"] = "H1"
            frames.append(d)
        if df_L1 is not None and not df_L1.empty:
            d = df_L1.copy()
            d["ifo"] = "L1"
            frames.append(d)
        if not frames:
            raise ValueError("No dataframes provided.")
        df_all = pd.concat(frames, ignore_index=True)

    # Prepare per-IFO
    ifos = sorted(df_all["ifo"].dropna().unique().tolist())
    per = {}
    for ifo in ifos:
        dfi = _prep_ifo_df(df_all[df_all["ifo"] == ifo])
        if not dfi.empty:
            per[ifo] = dfi

    if not per:
        raise RuntimeError("No valid segments found (need start_time, delta_t, n_samples).")

    # Global start/end for x-axis
    t0 = min(d["start_time"].min() for d in per.values())
    t1 = max(d["end_time"].max() for d in per.values())
    span = t1 - t0

    if unit == "seconds":
        scale = 1.0
        xlabel = "Time since start [s]"
    elif unit == "hours":
        scale = 3600.0
        xlabel = "Time since start [hours]"
    else:
        scale = 86400.0
        xlabel = "Time since start [days]"

    fig, ax = plt.subplots(figsize=(14, 3 + 0.8 * len(per)))

    # One horizontal lane per IFO
    lane_height = 0.8
    y_positions = {}
    for i, ifo in enumerate(ifos):
        y_positions[ifo] = i

    for ifo, dfi in per.items():
        y = y_positions[ifo]
        # Convert segments to (start_offset, duration) in requested units
        segs = []
        for st, en in zip(dfi["start_time"].values, dfi["end_time"].values):
            segs.append(((st - t0) / scale, (en - st) / scale))

        # Blue boxes for data coverage (gaps remain blank)
        ax.broken_barh(segs, (y - lane_height / 2, lane_height), facecolors="blue")

    ax.set_ylim(-1, len(ifos))
    ax.set_xlim(0, span / scale)
    ax.set_yticks([y_positions[ifo] for ifo in ifos])
    ax.set_yticklabels(ifos)
    ax.set_xlabel(xlabel)
    ax.set_title("Segment coverage timeline (blue = data present, blank = gap)")
    ax.grid(True, axis="x", alpha=0.3)
    plt.show()

# --- Call it ---
# If you have df_H1/df_L1:
plot_full_timeline(df_H1=df_H1, df_L1=df_L1, unit="days")

5) CALCULATE TOTAL REAL DURATION (EXCLUDING GAPS)

import pandas as pd

def total_duration_simple(df_ifo: pd.DataFrame) -> float:
    d = df_ifo.dropna(subset=["delta_t", "n_samples"]).copy()
    d["delta_t"] = d["delta_t"].astype(float)
    d["n_samples"] = d["n_samples"].astype(int)
    return float((d["delta_t"] * d["n_samples"]).sum())

# If you have df_H1 and df_L1:
H1_s = total_duration_simple(df_H1) if "df_H1" in globals() else 0.0
L1_s = total_duration_simple(df_L1) if "df_L1" in globals() else 0.0
ALL_s = H1_s + L1_s

print(f"H1 total:  {H1_s:.3f} s  ({H1_s/86400:.6f} days)")
print(f"L1 total:  {L1_s:.3f} s  ({L1_s/86400:.6f} days)")

H1 total:  7200.000 s  (0.083333 days)
L1 total:  7200.000 s  (0.083333 days)

6) VIEW FIRST SEGMENT AS PYCBC TIME SERIES

import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")
import lal
lal.swig_redirect_standard_output_error(False)

from pycbc.types import TimeSeries, load_timeseries

# Get the first valid segment key for a group
def first_existing_child(group):
    if not isinstance(group, h5py.Group):
        return None
    for k in sorted(group.keys(), key=lambda x: int(x) if str(x).isdigit() else str(x)):
        return k
    return None

file_path = HDF_PATH

# Choose IFO and first available segment key automatically
ifo = "H1" if "H1" in f else list(f.keys())[0]
seg_key = first_existing_child(f[ifo])
print(f"Using IFO {ifo}, segment key {seg_key}")

h1_ts = load_timeseries(file_path, group=f'H1/{seg_key}')
l1_ts = load_timeseries(file_path, group=f'L1/{seg_key}')

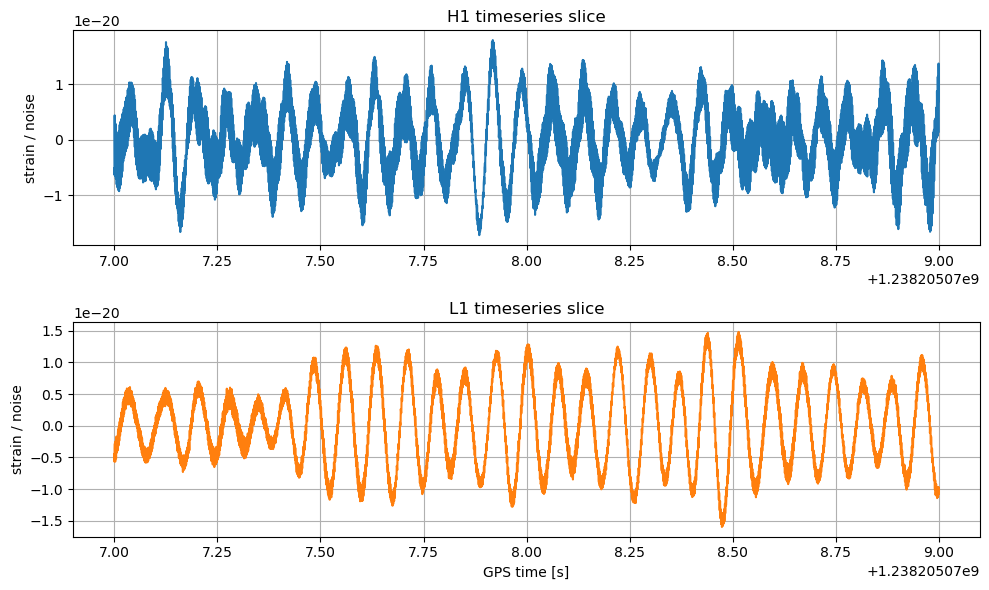

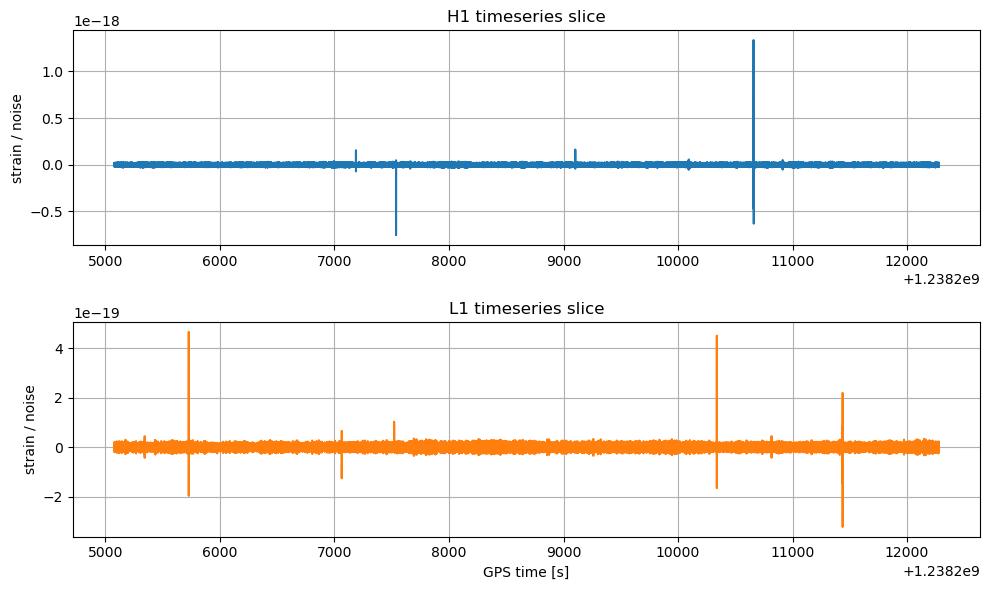

# Plot the example H1 / L1 timeseries loaded earlier
plt.figure(figsize=(10, 6))

plt.subplot(2, 1, 1)
plt.plot(h1_ts.sample_times, h1_ts, color="C0")
plt.title("H1 timeseries slice")
plt.ylabel("strain / noise")
plt.grid(True)

plt.subplot(2, 1, 2)
plt.plot(l1_ts.sample_times, l1_ts, color="C1")
plt.title("L1 timeseries slice")
plt.xlabel("GPS time [s]")
plt.ylabel("strain / noise")
plt.grid(True)

plt.tight_layout()
plt.show()

Using IFO H1, segment key 1238205077

7) INSPECT A SHORT DATA SLICE

# Plot the first 4096 data points, which is 2 seconds and a sampling rate of 2048Hz

plt.figure(figsize=(10, 6))

plt.subplot(2, 1, 1)
plt.plot(h1_ts.sample_times[:4096], h1_ts[:4096], color="C0")
plt.title("H1 timeseries slice")
plt.ylabel("strain / noise")
plt.grid(True)

plt.subplot(2, 1, 2)
plt.plot(l1_ts.sample_times[:4096], l1_ts[:4096], color="C1")
plt.title("L1 timeseries slice")
plt.xlabel("GPS time [s]")
plt.ylabel("strain / noise")
plt.grid(True)

plt.tight_layout()
plt.show()

8) EXTRACT INJECTIONS

from scipy import signal

fg_path = "data7200/foreground_train.hdf"
bg_path = "data7200/background_train.hdf"

# Load the full segment data
with h5py.File(bg_path, 'r') as fh_bg:
    with h5py.File(fg_path, 'r') as fh_fg:
        bg_full = np.asarray(fh_bg[f"H1/1238205077"][:])
        fg_full = np.asarray(fh_fg[f"H1/1238205077"][:])

        # Get segment attributes while files are open
        seg_obj = fh_bg[f"H1/1238205077"]
        start_time = float(seg_obj.attrs.get('start_time'))
        delta_t = float(seg_obj.attrs.get('delta_t'))

sample_rate = 1.0 / delta_t

# Calculate the difference (injections)
injections = fg_full - bg_full

# Build GPS time axis so we can plot against absolute time
gps_time = start_time + np.arange(injections.size) * delta_t

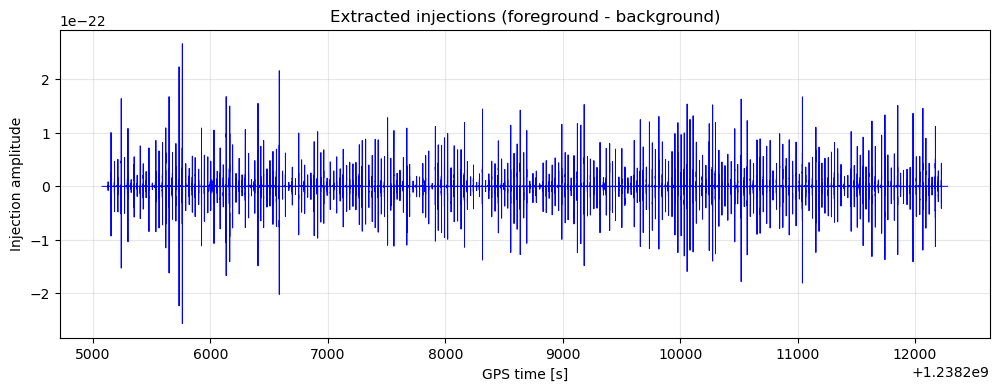

# Plot injections as a function of GPS time
plt.figure(figsize=(12, 4))
plt.plot(gps_time, injections, color='blue', linewidth=0.7)
plt.xlabel('GPS time [s]')
plt.ylabel('Injection amplitude')
plt.title('Extracted injections (foreground - background)')
plt.grid(True, alpha=0.3)
plt.show()

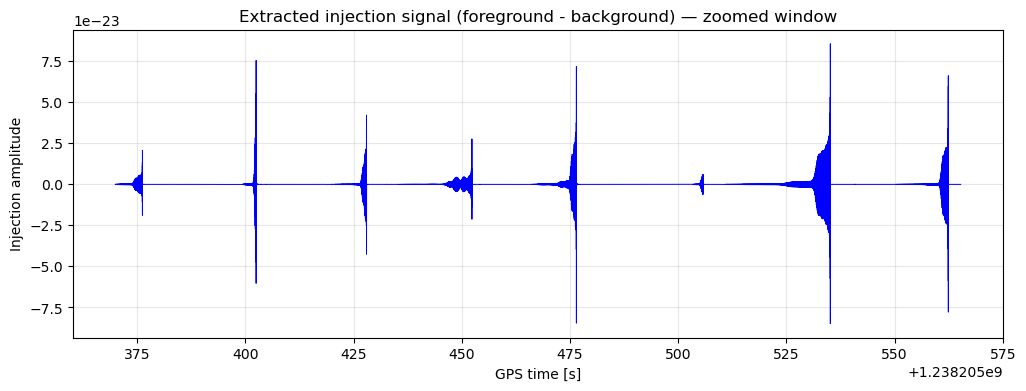

Zoom in

idx_start, idx_end = 600000, 1000000

plt.figure(figsize=(12, 4))
plt.plot(gps_time[idx_start:idx_end], injections[idx_start:idx_end], color='blue', linewidth=0.7)
plt.xlabel('GPS time [s]')
plt.ylabel('Injection amplitude')
plt.title('Extracted injection signal (foreground - background) — zoomed window')
plt.grid(True, alpha=0.3)
plt.show()

8) Close the file

Always close HDF5 files when you’re done (especially before overwriting/moving them).

#f.close()
print("Closed file.")

Closed file.
