Introduction

Introduction#

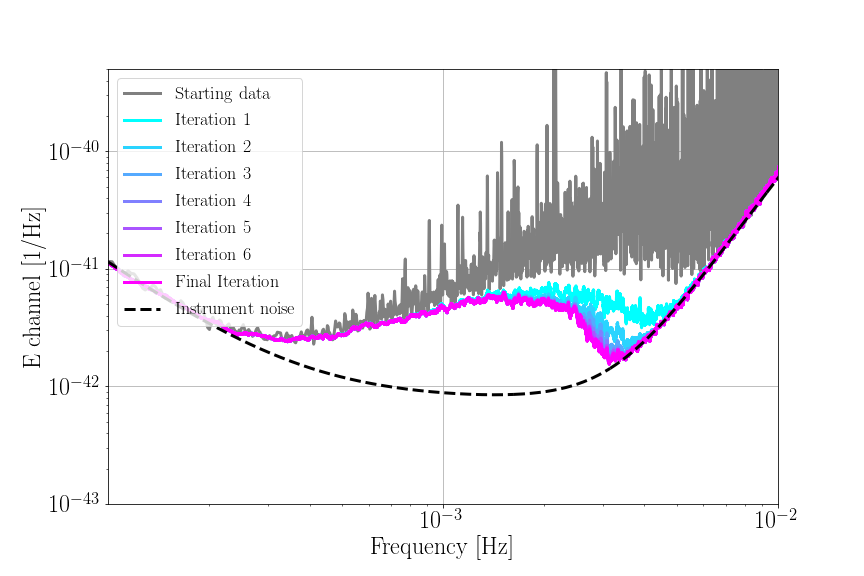

GWG example output

The ACME GWG session was held on May 8, 2026 and presented by Nikolaos Karnesis from Aristotle University of Thessaloniki. The session introduces gwg, a package for estimating the gravitational-wave confusion noise signal from compact Galactic binaries as measured by LISA.

LISA will measure a very large number of transient and quasi-monochromatic sources. A full Global Fit strategy can model this population with a large-scale blocked Gibbs sampling scheme, but that approach can be computationally expensive for forecast studies. GWG provides a lower-cost alternative based on SNR criteria and simplifying assumptions, acting as a practical simulation of the Global Fit pipeline.

The original event page is available on Indico, and the source code is available at gitlab.in2p3.fr/Nikos/gwg. The session slides are included here as 20260508_gwg_tutorial.pdf.

Installation#

The GWG README recommends using a dedicated conda environment:

conda create -n gwg_env -c conda-forge gsl numpy scipy jupyter pandas matplotlib xarray h5py tqdm pytables astropy python=3.12
conda activate gwg_env

Install lisaanalysistools:

git clone https://github.com/mikekatz04/LISAanalysistools.git
cd LISAanalysistools
pip install .

Install the Galactic-binary waveform package:

pip install gbgpu

Then install GWG:

git clone https://gitlab.in2p3.fr/Nikos/gwg.git
cd gwg
pip install .

Optional smoothing and waveform dependencies can also be useful:

pip install whittaker-eilers
pip install fastgb

Depending on the machine, the LISA-related packages may need to be installed from source. GPU execution also requires a compatible CuPy installation.

Usage#

GWG needs TDI A, E, and T noise curves. The package includes a basic analytic LISA noise utility:

noise = gwg.utils.lisa_noise(f=fvec)

lisa_noise = {
    "A": noise._noise_psd_AA().astype(np.float64),
    "E": noise._noise_psd_AA().astype(np.float64),
    "T": noise._noise_psd_TT().astype(np.float64),
    "f": fvec.astype(np.float64),
}

The basic workflow has two stages:

  1. Generate a compact Galactic binary catalogue and the associated A, E, T frequency-domain data.

  2. Run the iterative confusion-noise reduction loop.

For data generation, create a GBGPU waveform object and call gwg.generate_data:

import gwg
from gbgpu.gbgpu import GBGPU
from lisatools.detector import EqualArmlengthOrbits

GB = GBGPU(force_backend="cpu", orbits=EqualArmlengthOrbits())
cat = gwg.utils.load_h5(my_h5_catalog_name, key="cat")

tdi, cat = gwg.generate_data(cat, lisa_noise, GB, AET=True)
gwg.utils.to_h5(my_h5_data_name, cat=cat, tdi=tdi)

Once the data are available, run the main loop:

AET, S1, S1r, cat = gwg.icloop(
    AET,
    GB,
    cat,
    lisa_noise,
    Df,
    maxiter=3,
    snr_thresh2=snr_thresh2**2,
    tol=0.1,
    doplot=True,
    logger=logger,
    oversample=4,
    methoduse="median",
)

The notebook in this section walks through a compact tutorial example using a generated demo catalogue and writes minimal_gwg_output.h5 locally when executed.

Citation#

For scientific use, cite Karnesis, Babak, Pieroni, Cornish, and Littenberg, Phys. Rev. D 104, 043019. The implementation is by Nikos Karnesis, Stas Babak, and Maude Le Jeune, with code optimisation by Federico Pozzoli.
